RightMark Audio Analyzer test report
| Testing device | TASCAM US-122 MKII 24bit 96kHz |
| Sampling mode | 24-bit, 96 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | 0.3 dB / 0.3 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.06, -0.15 |
Very good |
| Noise level, dB (A) | -96.1 |
Excellent |
| Dynamic range, dB (A) | 96.0 |
Excellent |
| THD, % | 0.062 |
Average |
| THD + Noise, dB (A) | -61.1 |
Poor |
| IMD + Noise, % | 0.071 |
Good |
| Stereo crosstalk, dB | -94.0 |
Excellent |
| IMD at 10 kHz, % | 0.062 |
Good |
| General performance | Very good |

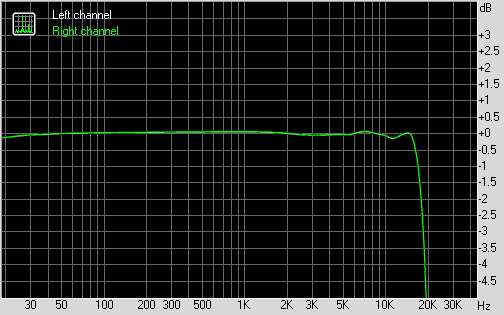

Frequency response
| From 20 Hz to 20 kHz, dB | -6.07, +0.06 |
| From 40 Hz to 15 kHz, dB | -0.15, +0.06 |

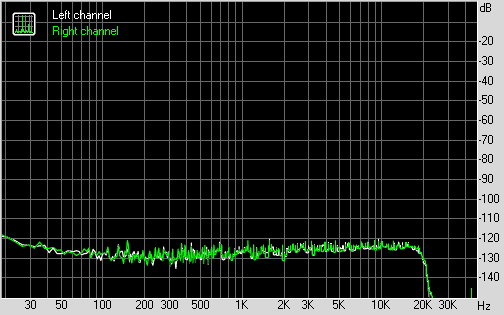

Noise level
Left |
Right |
|
| RMS power, dB | -95.3 |
-95.3 |
| RMS power (A-weighted), dB | -96.2 |
-96.1 |
| Peak level, dB FS | -77.1 |
-77.7 |
| DC offset, % | -0.0 |
-0.0 |

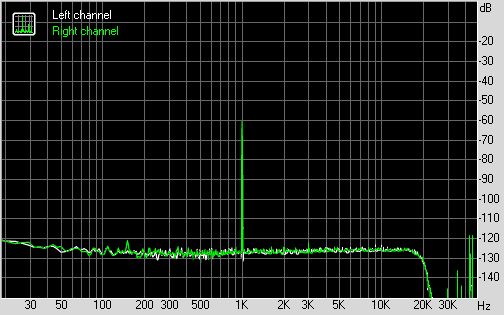

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +95.1 |
+95.2 |
| Dynamic range (A-weighted), dB | +96.0 |
+96.1 |
| DC offset, % | -0.00 |
-0.00 |

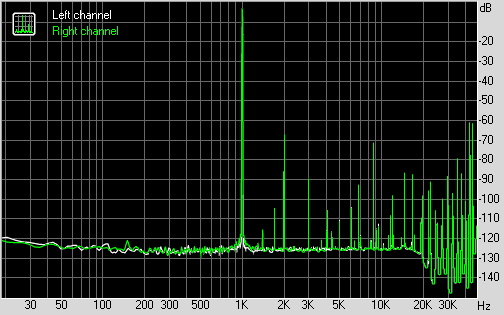

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0610 |
+0.0636 |
| THD + Noise, % | +0.0725 |
+0.0747 |
| THD + Noise (A-weighted), % | +0.0865 |
+0.0896 |

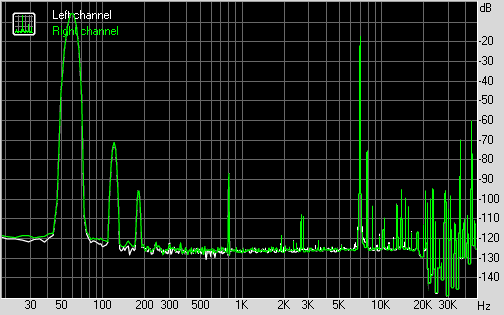

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0704 |
+0.0723 |
| IMD + Noise (A-weighted), % | +0.0517 |
+0.0527 |

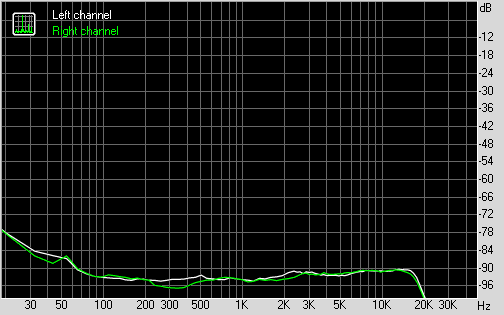

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -92 |
-92 |
| Crosstalk at 1000 Hz, dB | -93 |
-93 |
| Crosstalk at 10000 Hz, dB | -90 |
-90 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0789 |
0.0813 |
| IMD + Noise at 10000 Hz, | 0.0560 |
0.0574 |
| IMD + Noise at 15000 Hz, | 0.0483 |
0.0499 |
