RightMark Audio Analyzer test report
| Testing device | ESI ESP1010e Ch12 24-bit, 48 kHz |
| Sampling mode | 24-bit, 48 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.7 dB / -0.6 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.04, -0.12 |
Very good |
| Noise level, dB (A) | -94.3 |
Very good |
| Dynamic range, dB (A) | 94.5 |
Very good |
| THD, % | 0.0013 |
Excellent |
| THD + Noise, dB (A) | -87.6 |
Good |
| IMD + Noise, % | 0.0054 |
Excellent |
| Stereo crosstalk, dB | -93.8 |
Excellent |
| IMD at 10 kHz, % | 0.0055 |
Excellent |
| General performance | Very good |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.31, +0.04 |
| From 40 Hz to 15 kHz, dB | -0.12, +0.04 |
Noise level
Left |
Right |
|
| RMS power, dB | -93.1 |
-93.2 |
| RMS power (A-weighted), dB | -94.3 |
-94.4 |
| Peak level, dB FS | -79.2 |
-79.6 |
| DC offset, % | +0.0 |
+0.0 |

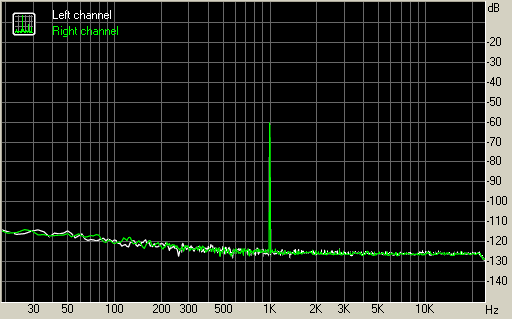

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +93.2 |
+93.4 |
| Dynamic range (A-weighted), dB | +94.4 |
+94.5 |
| DC offset, % | +0.00 |
+0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0013 |
+0.0014 |
| THD + Noise, % | +0.0046 |
+0.0045 |
| THD + Noise (A-weighted), % | +0.0042 |
+0.0041 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0054 |
+0.0053 |
| IMD + Noise (A-weighted), % | +0.0047 |
+0.0045 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -92 |
-90 |
| Crosstalk at 1000 Hz, dB | -92 |
-93 |
| Crosstalk at 10000 Hz, dB | -91 |
-91 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0055 |
0.0054 |
| IMD + Noise at 10000 Hz, | 0.0053 |
0.0053 |
| IMD + Noise at 15000 Hz, | 0.0057 |
0.0055 |
